PbS PbSe 256 Element Linear Array Detector

Infrared Materials photoconductive Linear Multiplexed Arrays are designed for use in quality and process control systems, IR spectroscopy, gas monitoring, imaging and thermography.



Key Features:

• 256 square or rectangular elements
• 50 um pitch
• Operation over 1 – 5.5 um NIR and Mid-IR range
• Real-time calibration adjustment
• Low profile 84-Pin Leadless Chip Carrier (LCC) package
• Temperature control via TE cooler and thermistor
• Integrated multiplexer

Optional Accessories:

• USB digital controller board
• Fast prototyping development system
• Array software and SDK available

Support Documents:

• PbS Array Detector Specification: http://infraredmaterials.com/wp-content/uploads/2016/10/IMI-Part-Specification-PbS-LCC-Array.xlsx
• PbSe Array Detector Specification: http://infraredmaterials.com/wp-content/uploads/2016/09/Part-Specification-PbSe-LCC-Array.xlsx

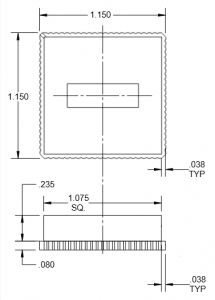

Mechanical Features:
